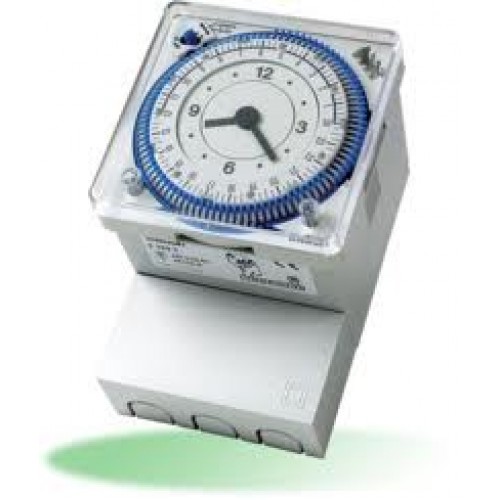

Controls electrical equipment up to 20A resistive. Easily set by the captive segment setting dial, the unit has a maximum of 48 ON & OFF programmes per day.
20(12)A (4.6kW) loading.
72 × 72mm plug-in base surface mount.
Captive segment dial.
Optional panel mount (clip included).
Synchronous motor driven.
Time display for ease of operation.
Manual override to next programme change and permanent ON/OFF.
15 minute minimum switching interval which can be increased in 15 minute steps.
Tamper proof transparent cover.
Controls electrical appliances (resistive loads) up to 4.6kW.
12 amp inductive rating.
DIN rail adaptor available. Part No. 907-0-071
Mounting Options: E169S, E269H, TR 635 top, TR 636 top & ELU56/ELU5620 timeswitches can be easily mounted in a 68mm square panel hole with the aid of mounting bracket AK305 supplied with product.
They can also be mounted on DIN rail using adaptor 907-0-071.
